Breaking Flat Layers With Non-Planar Slicing and Multi-Axis FDM Hardware Engineering
Fused Deposition Modeling is breaking out of flat horizontal layers. Non-planar toolpaths allow 3D printers to follow true organic curves.
Traditional 3D printing operates on a basic principle: slicing a digital 3D model into perfectly flat, horizontal 2D layers stacked on top of each other. While highly reliable, this approach creates an inherent weakness known as the staircase effect, where curved or sloped surfaces exhibit distinct, jagged layer lines that degrade both cosmetic appeal and directional part strength.

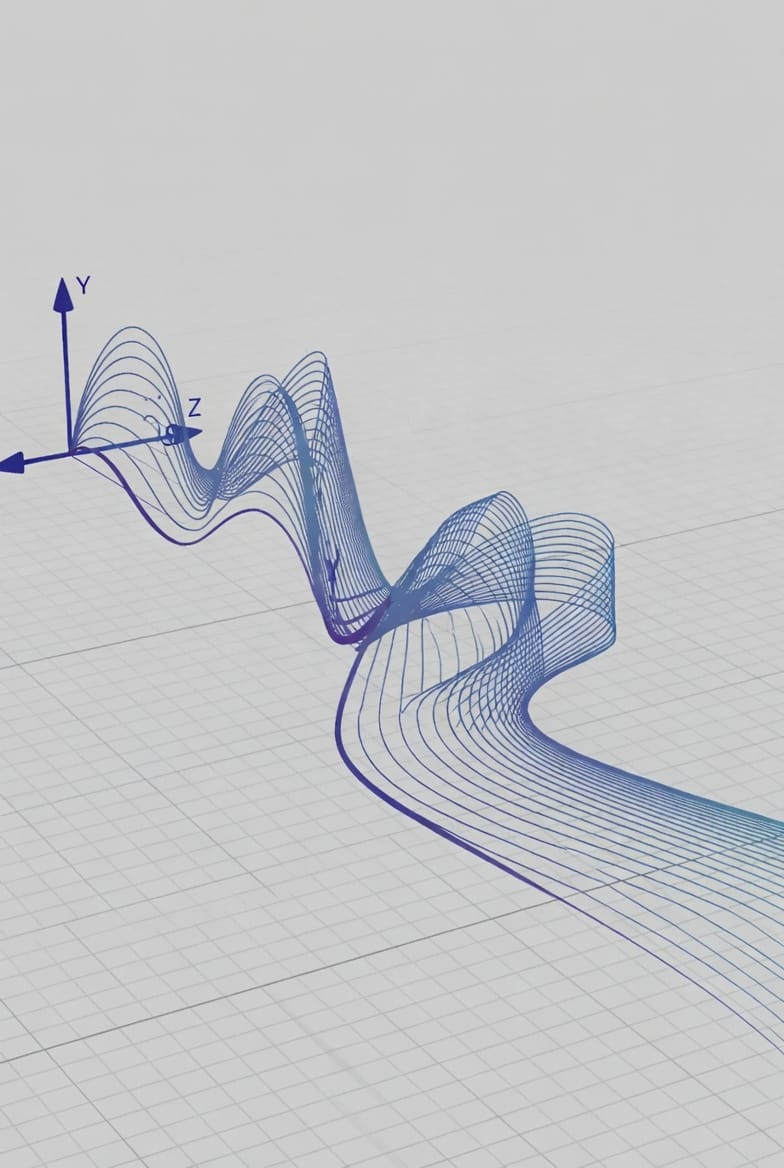

Non-planar slicing completely rewrites this toolpath logic. Instead of keeping the Z-axis fixed while tracing an individual layer, advanced multi-axis software instructs the printer to dynamically move all axes simultaneously. The toolhead can glide up and over an organic contour, extruding a continuous, curved ribbon of plastic that matches the true geometry of the part.
Implementing this requires precise hardware and software orchestration. The printer's nozzle assembly must feature steep tapers to prevent the cooling block from colliding with previously extruded plastic, and the motion system must maintain precise velocity controls across multiple intersecting axes. The reward for taming this complexity is a part with completely smooth surface finishes and significantly higher structural integrity along complex load paths.
