In the world of modern gadgets, thinner is almost always better. Whether it’s a razor-thin laptop or a sleek handheld gaming console, the challenge for engineers is always the same: how do you connect complex internal components when there is almost zero physical space?

The answer lies in two critical components: FFC (Flexible Flat Cable) and FPC (Flexible Printed Circuit) connectors. These unsung heroes of the electronics world are the reason your favorite devices can stay slim without sacrificing performance.

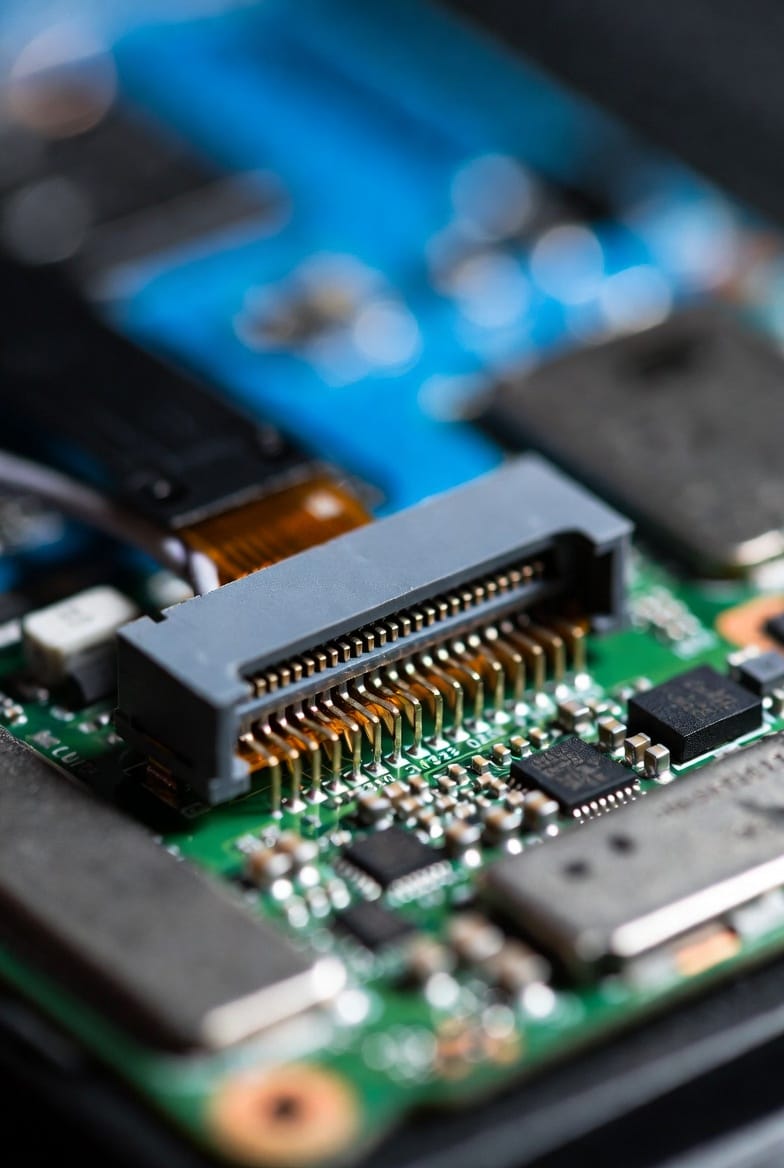

What are FFC and FPC Connectors?

While they look similar to the naked eye, they serve slightly different purposes in a cable assembly:

• FFC (Flexible Flat Cable): Think of this as a "flat" version of a traditional round wire. It consists of flat copper conductors laminated between two layers of insulating foil. It is best for simple, point-to-point connections.
• FPC (Flexible Printed Circuit): This is essentially a flexible circuit board. It uses chemically etched copper traces on a polyimide base. Unlike FFCs, FPCs can host surface-mount components (like resistors or LEDs) and can be designed in complex, non-linear shapes.

How These Connectors Work

The magic of these connectors lies in their Zero Insertion Force (ZIF) or Non-ZIF mechanisms.

1. The Interface: The cable has exposed metallic "fingers" at the end.
2. The Housing: The connector is mounted onto the main PCB (Printed Circuit Board).
3. The Locking Mechanism: In a ZIF connector, a small flip-lock or slider actuator is opened. The cable is slid in without resistance (hence "Zero Insertion Force"), and the actuator is pressed down. This creates a high-pressure contact between the cable's fingers and the connector’s terminals, ensuring a stable signal.

Key Use Cases in Modern Tech

1. Gaming Handhelds and Consoles

In devices like the Nintendo Switch or Steam Deck, space is at a premium. FPC connectors are used to link the joysticks, trigger buttons, and haptic motors to the mainboard. Their flexibility allows them to fold around internal batteries and heat sinks.

2. Laptops and PCs

Open up any modern ultra-portable laptop, and you’ll see FFCs everywhere. They are the standard for connecting the keyboard, trackpad, and fingerprint scanner to the motherboard. Because they are flat, they don't add "bulk" to the stack height of the laptop.

3. Display Technology

FFC/FPC assemblies are the industry standard for connecting LCD and OLED screens to their driver boards. They can handle high-speed data transmission required for 4K resolutions while remaining thin enough to fit inside a display bezel.

Why Engineers Choose Them

• Weight Reduction: They are significantly lighter than traditional wire harnesses.
• Flexibility: They can withstand millions of "folds," making them perfect for foldable phones or laptop hinges.
• Cost-Efficiency: For high-volume consumer electronics, FFCs offer a lower-cost path to reliable connectivity.
