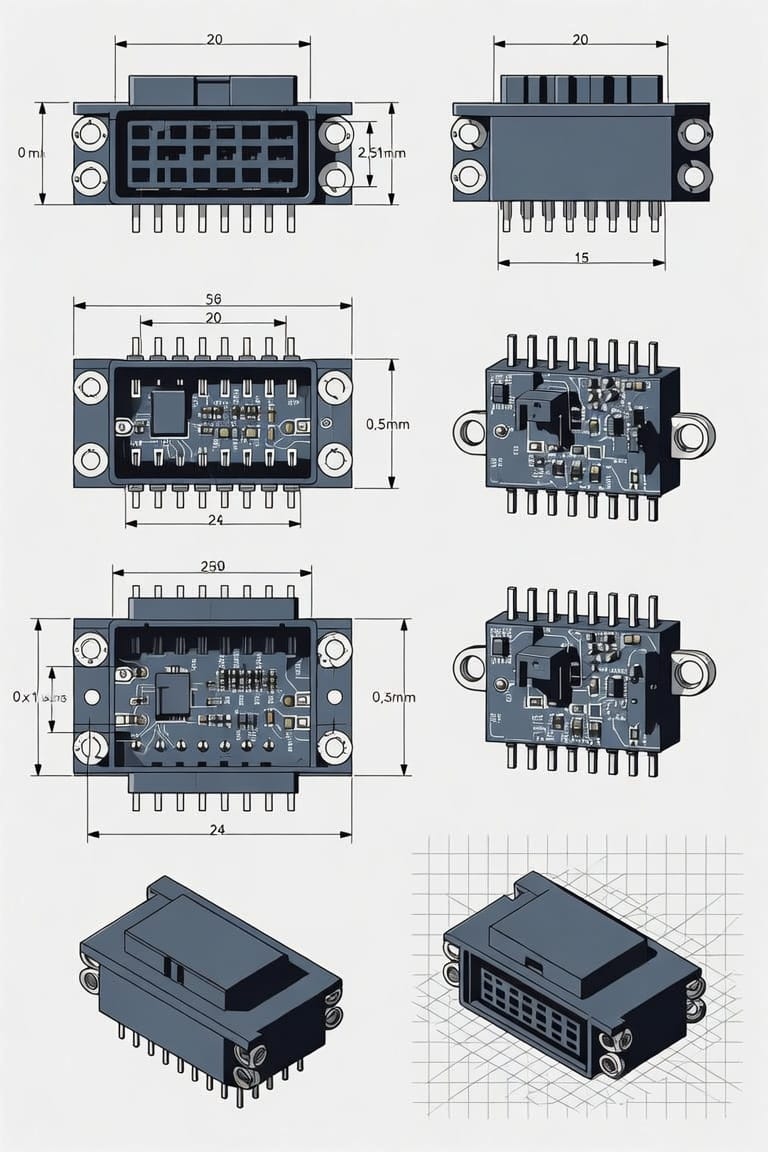

Going Miniature: Surviving the High-Density Micro Board-to-Board Landscape
High-density layouts demand tiny footprints. Here is how to navigate micro board-to-board connector selection without breaking your plastics.
If you thought routing FPC traces was a headache, welcome to the world of micro board-to-board connectors. When you are designing modern compact devices, wearables, or modular camera assemblies, you don't have the luxury of space. You are trying to stack multiple PCBs directly on top of each other while keeping the total Z-height as close to zero as possible. But when you drop a connector down to a 0.35mm pitch and a 0.6mm stacking height, you enter a territory where the slightest misalignment during assembly can instantly crush a pin or crack a liquid crystal polymer (LCP) housing wall.
From a practical engineering perspective, Amphenol Aorora addresses this fragility through a design feature they call "armor nails." These are essentially integrated metal reinforcement brackets molded directly into the outer edges of the connector housing. When an assembly operator is blindly mating two boards together, these metal tabs take the brunt of the impact instead of the delicate plastic walls or the fine signal pins inside. Additionally, the contacts are tuned to provide a distinct, tactile "snap" when fully seated. When you can't physically see under a daughterboard during assembly, that physical feedback is your only assurance that the connection is solid.
Another silent killer in micro board-to-board designs is PCB coplanarity. If your surface-mount pads aren't perfectly flat across the length of the board, some pins will float above the solder paste during reflow, leading to intermittent open circuits. Aorora combats this by keeping contact coplanarity tolerances tightly controlled during manufacturing. This ensures that every single lead makes reliable contact with the paste, reducing rework loops and keeping your yields high.
