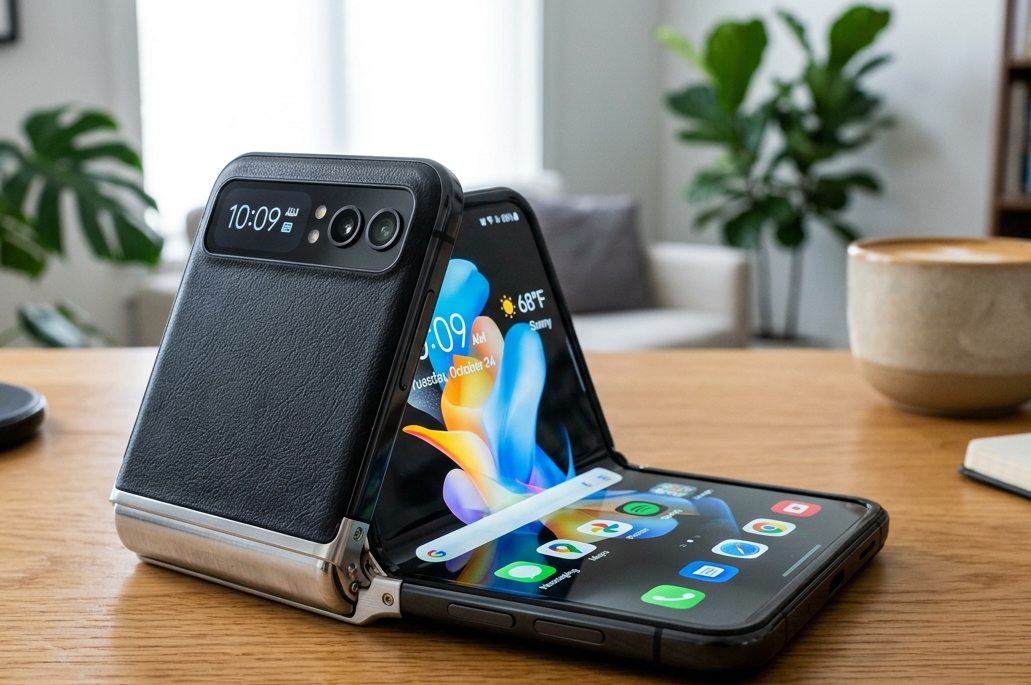

Technical Deep Dive: Ultra-Fine Pitch Mezzanine Foldable Hinges
The engineering race inside the foldable smartphone market comes down to a single focus area: the complexity of the mechanical hinge.
While standard slab smartphones have reached a design plateau, the foldable market remains a highly dynamic engineering landscape. The primary goal for foldable designers is making a device that folds perfectly flat with zero gap between the screens, while minimizing the physical crease on the flexible display panel.
Achieving this requires complex, multi-axis hinge mechanisms that utilize ultra-fine pitch gear arrays and aerospace-grade materials like liquid metal and carbon fiber composites. These next-gen hinges employ a "waterdrop" bending philosophy: when closed, a portion of the flexible OLED panel gently drops back inside the body of the hinge, forming a teardrop shape.
This internal loop relieves the mechanical stress on the ultra-thin protective glass, preventing permanent creasing and allowing the two halves of the device to fold completely flush against each other. This intricate mechanical engineering allows modern foldables to match the thickness of standard phones when closed, without compromising structural durability or long-term hinge retention.
