ZIF Revolution in Surgical Robotics: Zero-Insertion-Force for 10,000-Cycle Tool Changes
Surgical robots demand frequent tool swaps under strict sterilization while maintaining high-speed imaging. Zero Insertion Force (ZIF) FFC/FPC connectors lift contacts during mating to eliminate wear, enabling ultra-high cycle life and reliable data transmission in compact arms.
In robotic-assisted surgery, every second counts and reliability is non-negotiable. Surgeons swap instruments dozens of times per procedure, often under time pressure, while components must survive repeated sterilization cycles. Traditional friction-based connectors wear out quickly, leading to signal degradation or mechanical failure.
The game-changing solution is the Zero Insertion Force (ZIF) FFC/FPC connector. Unlike standard connectors that rely on sliding friction, ZIF designs use a mechanical actuator (back-flip, front-flip, or one-action) that completely lifts the contacts during insertion. This eliminates wear on the delicate gold-plated fingers of the flexible flat cable (FFC) or flexible printed circuit (FPC), dramatically extending mating life.
Leading solutions include Molex Easy-On ZIF families, optimized for robotic mating and automated SMT processes with pitches from 0.5 mm to 1.0 mm. Hirose’s FH34D back-flip and One Action FH series allow simple insertion with a clear tactile click, ideal for both human and robotic assembly. I-PEX CABLINE and Auto-Lock variants add mechanical locking for higher retention force (up to 1.7x improvement) and vibration resistance, supporting shielded high-speed links.
These connectors routinely achieve 10,000+ mating cycles while maintaining low contact resistance (<1 mΩ) and excellent signal integrity for LVDS, eDP, or micro-coaxial protocols at 10+ Gbps. Full EMI shielding protects sensitive imaging data from motor noise in tight robotic wrists.
Benefits across robot categories:
- Medical/Surgical Robots: Sterile tool changes happen multiple times daily. ZIF’s zero-friction mating reduces particulate generation and supports autoclave or disposable drape compatibility. Slim profiles (as low as 0.65–1.0 mm height) fit inside 5–8 mm diameter arms, enabling minimally invasive procedures with 4K/8K vision and real-time haptic feedback.
- Household Humanoids: Future home robots (like advanced Optimus or Figure models) will allow non-expert owners to swap sensors, batteries, or cleaning attachments. ZIF makes these swaps tool-free and foolproof, lowering service costs and encouraging consumer adoption at sub-$25,000 price points.

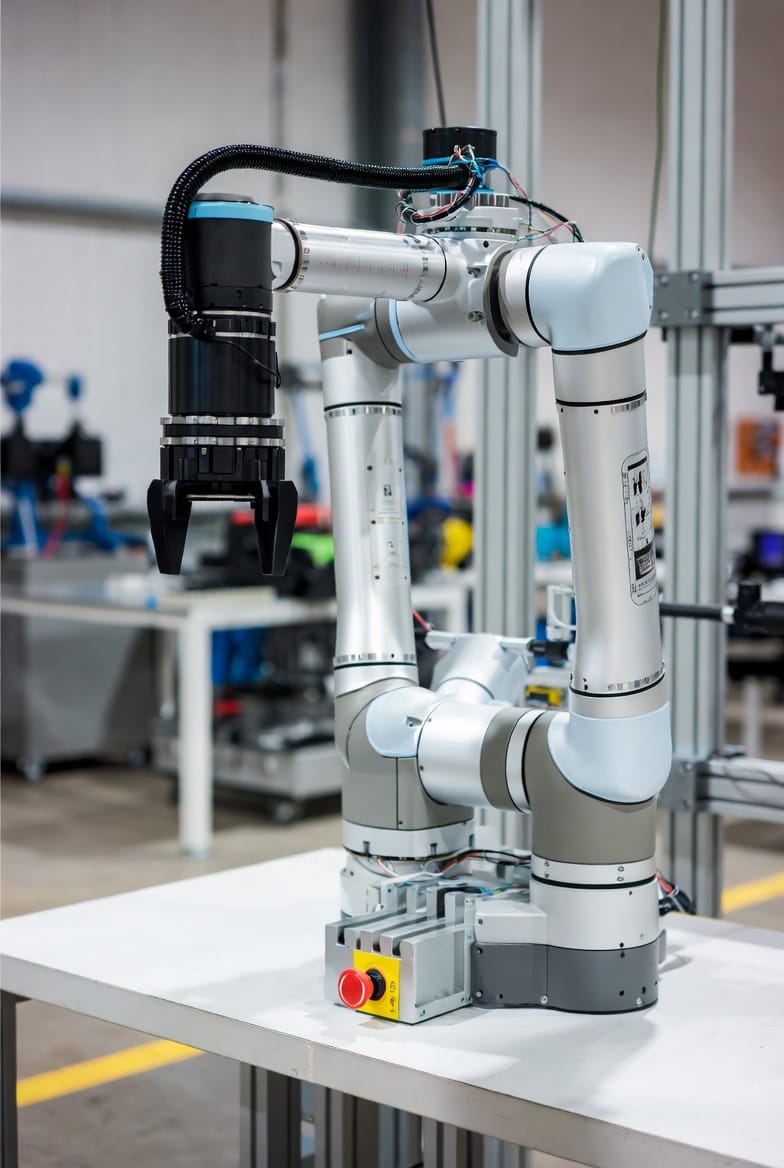

- Industrial Automation & Cobots: Rapid end-effector changes on assembly lines benefit from automation-friendly one-action designs. Hirose One Action FH reduces insertion force and misalignment risks, speeding robotic assembly while maintaining reliability in high-vibration environments.
Technical highlights include wide temperature ratings (–40°C to +105°C or higher), support for shielded FFC, and compatibility with automated assembly. By 2030, as surgical robot markets exceed $25 billion, ZIF connectors will help reduce procedure times, lower maintenance expenses, and enable smaller, more dexterous arms.
Engineers should prioritize connectors with proven high-cycle testing and integration with high-flex FFC for dynamic joints. Combining ZIF with floating tolerance further enhances durability under repeated motion.
The ZIF revolution transforms connectors from a maintenance headache into a competitive advantage, powering the next wave of precise, reliable, and user-friendly robots across operating rooms, factories, and homes.
