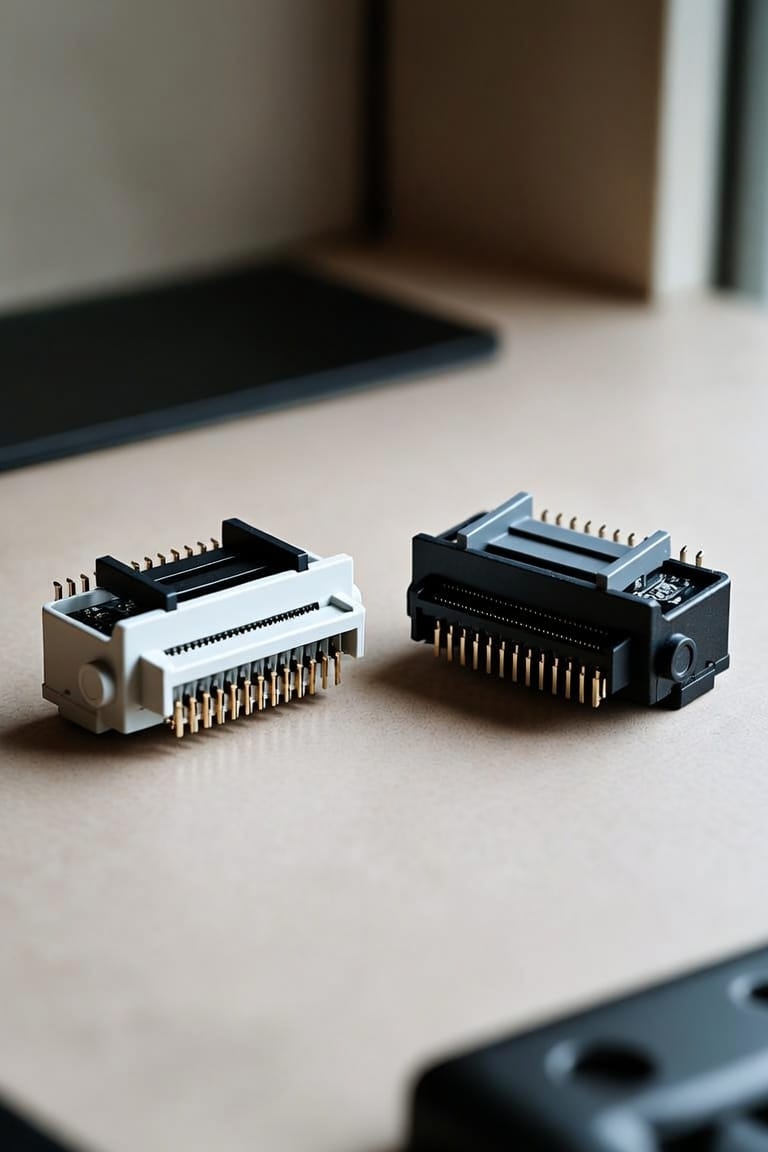

Managing Impedance Fluctuation in Floating Board-to-Board Connectors

Floating board-to-board (B2B) connectors are highly effective tools for mitigating mechanical stacking tolerances in complex multi-board assemblies, such as automotive electronics or industrial control blocks. These connectors feature internal spring-loaded or articulating contact matrices that allow the mating plugs to shift physically along the X, Y, and Z axes without losing electrical contact. However, this mechanical movement is a major variable for high-speed signal lines.

When a floating connector shifts to accommodate a physical misalignment, the spatial gap between the signal pin and its neighboring ground pins changes. Because characteristic impedance is directly determined by the geometric relationship and spacing between conductors, this shift alters the local capacitive and inductive properties.

At high data rates, this dynamic geometric variation creates an unpredictable impedance discontinuity, resulting in signal reflections, increased jitter, and EMI issues. Engineers must look for connectors designed with optimized ground-shielding structures that envelop the contacts, ensuring a stable ground path even during maximum mechanical displacement.
